Anchor Pipe (Welded & Snap on)

Anchor pipe couplings are "plain end" mechanical joint fittings, with a rotating follower gland on each end. The protruding plain end, when fitted with gasket, is inserted into a standardized mechanical joint bell, and bolted tight, flange to flange. These fittings eliminate the need of tie rods and other costly, time-consuming methods of positive, fixed placement. When used with shut-off valves, these fittings prevent the valve from blowing-off and eliminate the need for blocking. They save time and labor in installation, and save time digging when a hydrant must be moved or replaced. The are desirable in hydrant leads for tees in the main. They can be used with a shut-off valve in place of a plug in a tee to permit extending the line during construction without interrupting testing; and/or at the stub end of a line, either branch or main to eliminate blocking and the possibility of blow-off.

Pipe can be furnished in any combination of joint-ends; Plain end by anchor; MJ by anchor; Push-on by anchor; Flange by anchor. During assembly the rotating glands will accommodate any orientation for the bolt holes in existing fittings to which the pipe will be connected. When assembled and tightened against the stop shoulder it makes a fixed joint.

Anchor couplings can be furnished in any length from 13" to 18 feet. Available in any established length they provide a positive way of assuring that hydrant installations are accurate to given dimensions and make possible standardized and uniform installations throughout the system. They are fabricated from class 53 ductile iron pipe and are furnished cement-lined and tar coated.

Call for current pricing.

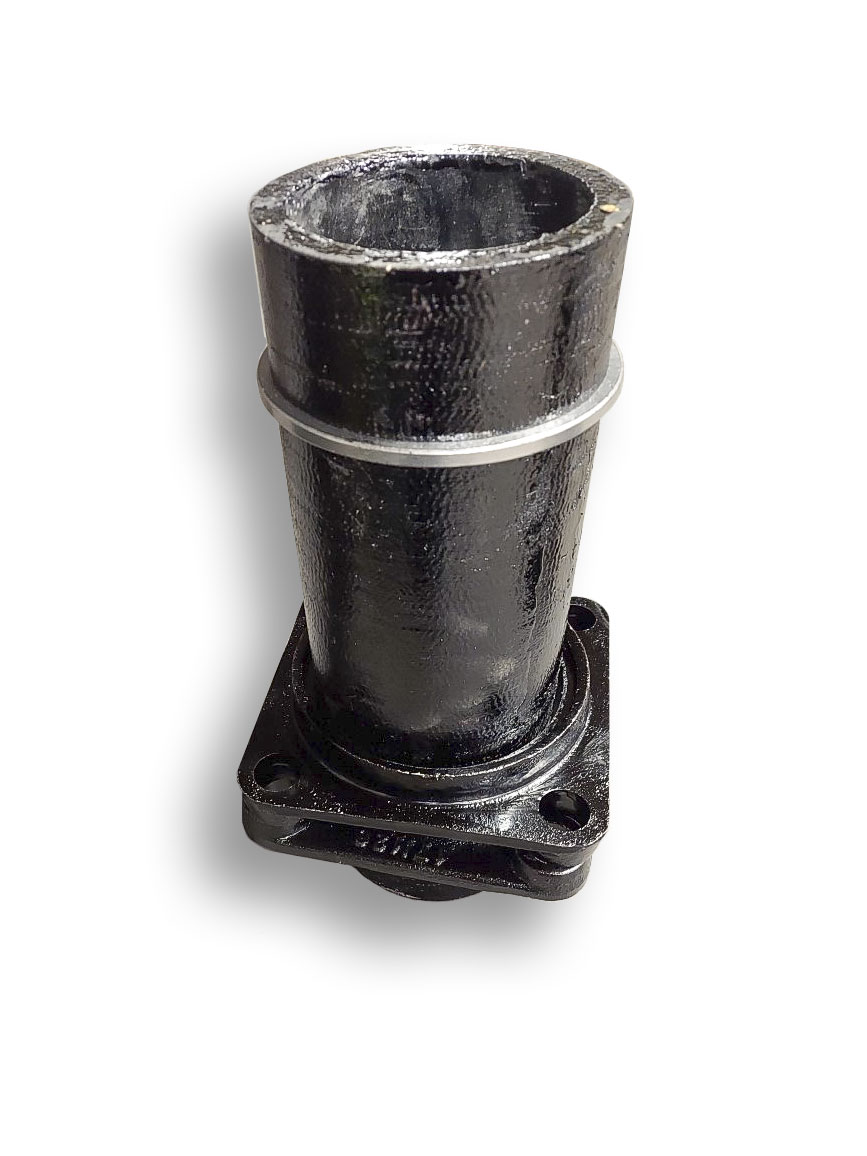

Anchor By Anchor With Welded Ring

Notes:

  1. Tolerance on length of pipe shall be 0.25".
  2. Above materials shall meet all applicable sections of A.N.S.I. A21.10, A21.15, A21.50, A21.51, B2.1, B16.1 / A.W.W.A. C110, C115, C150, C151, and all revisions thereto.
  3. Anchor pipe shall be made of ductile-iron pipe class 53.
  4. Lining shall be in accordance with A.N.S.I. A21.4.
  5. Pusher gland A.N.S.I. / A.W.W.A. A21.10 / C110, A21.53 / C153.
  6. Size normally 6" - however available in all sizes.
  7. Length - as required.

Anchor By Anchor With Snap Ring

Notes:

  1. Tolerance on length of pipe shall be 0.25".
  2. Above materials shall meet all applicable sections of A.N.S.I. A21.10, A21.15, A21.50, A21.51, B2.1, B16.1 / A.W.W.A. C110, C115, C150, C151, and all revisions thereto.
  3. Anchor pipe shall be made of ductile-iron pipe class 53.
  4. Lining shall be in accordance with A.N.S.I. A21.4.
  5. Pusher gland A.N.S.I. / A.W.W.A. A21.10 / C110, A21.53 / C153.
  6. Size normally 6" - however available in all sizes.
  7. Length - as required.
